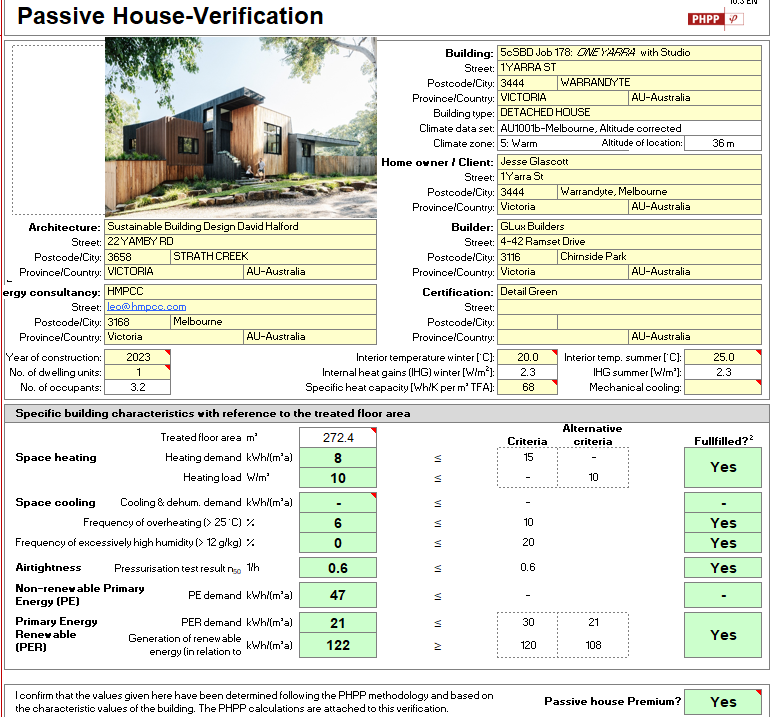

ONE YARRA PASSIVHAUS PREMIUM
PHI Database ID 7904 https://passivehouse-database.org/index.php?lang=en#d_6959
Description:

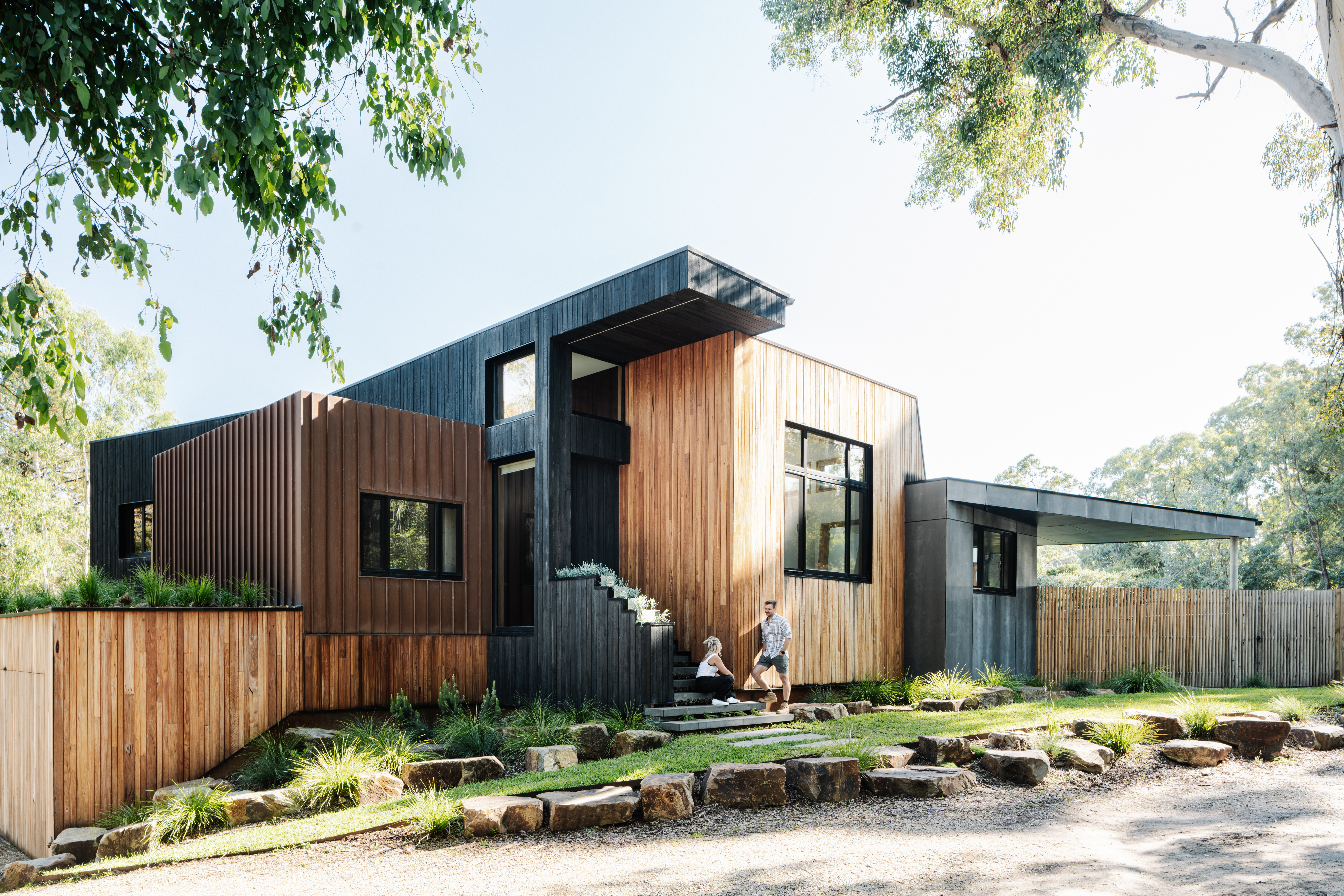

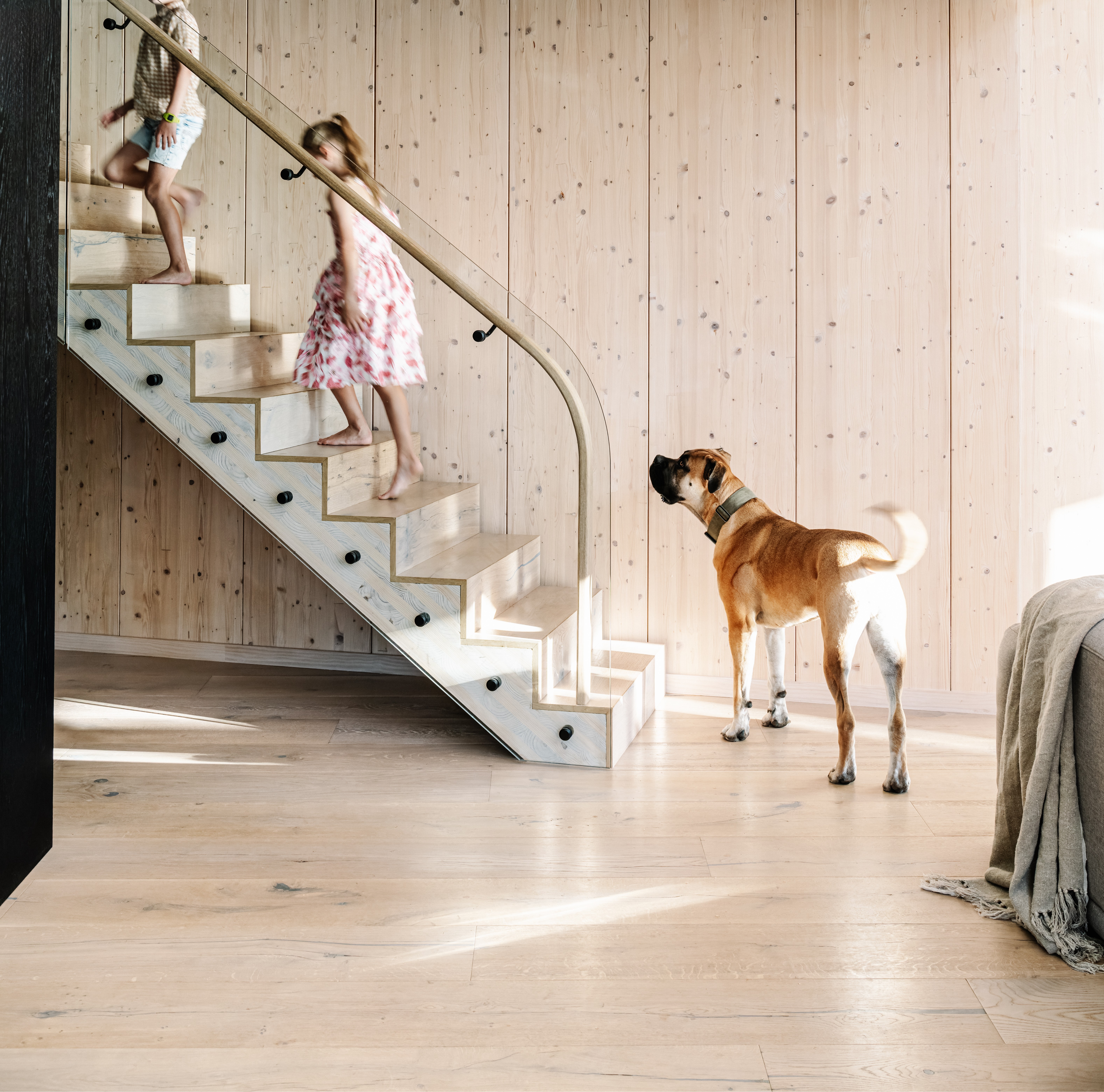

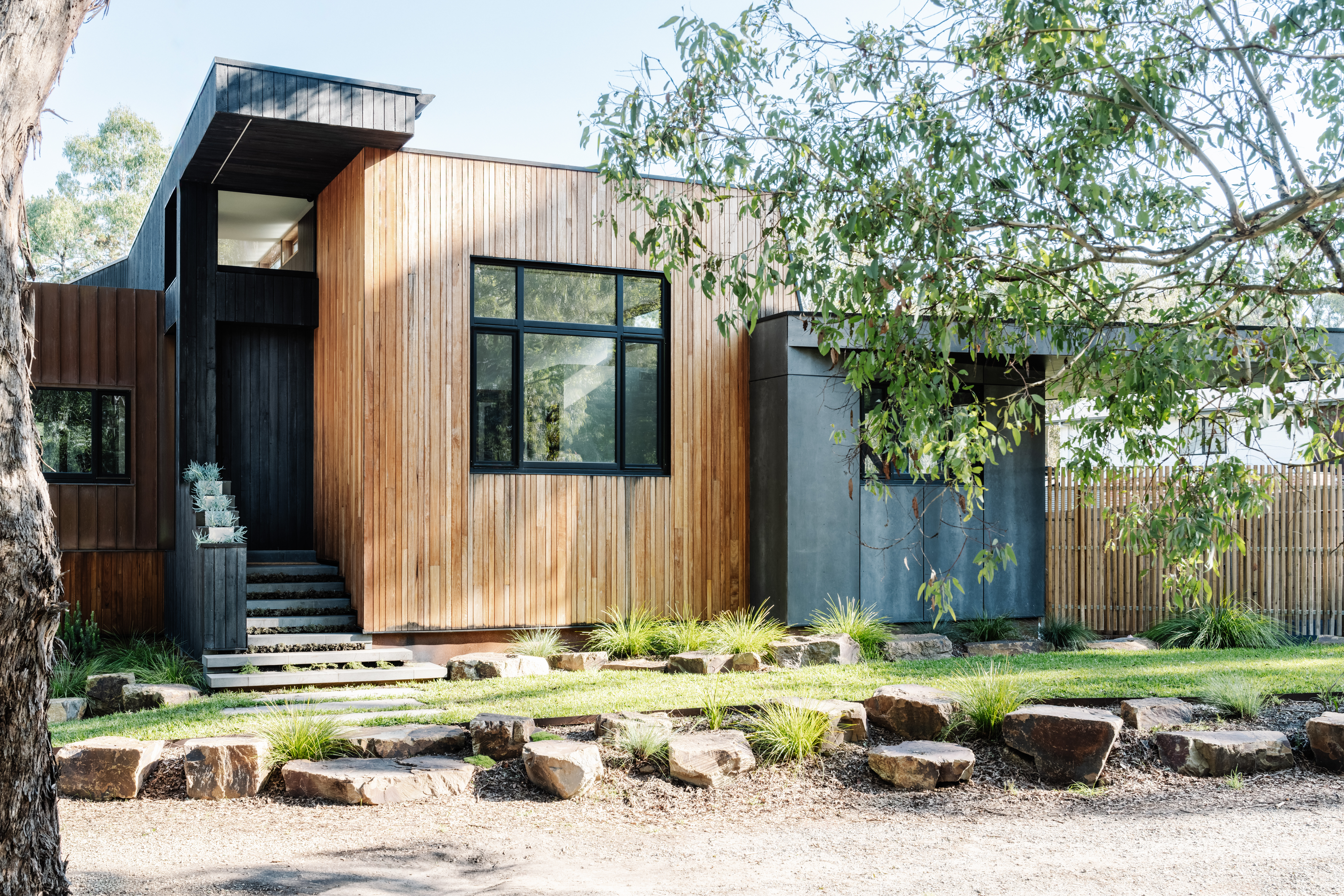

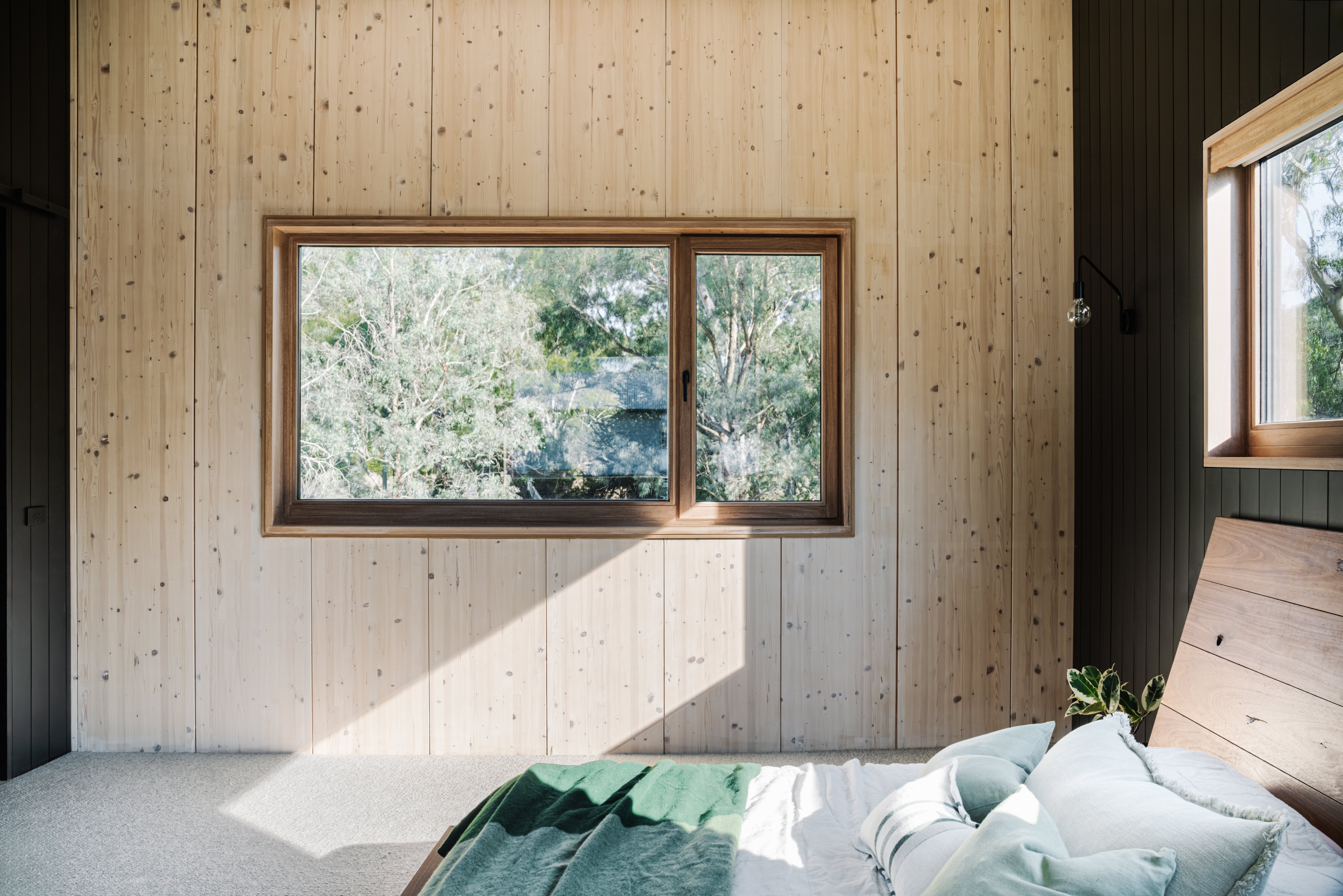

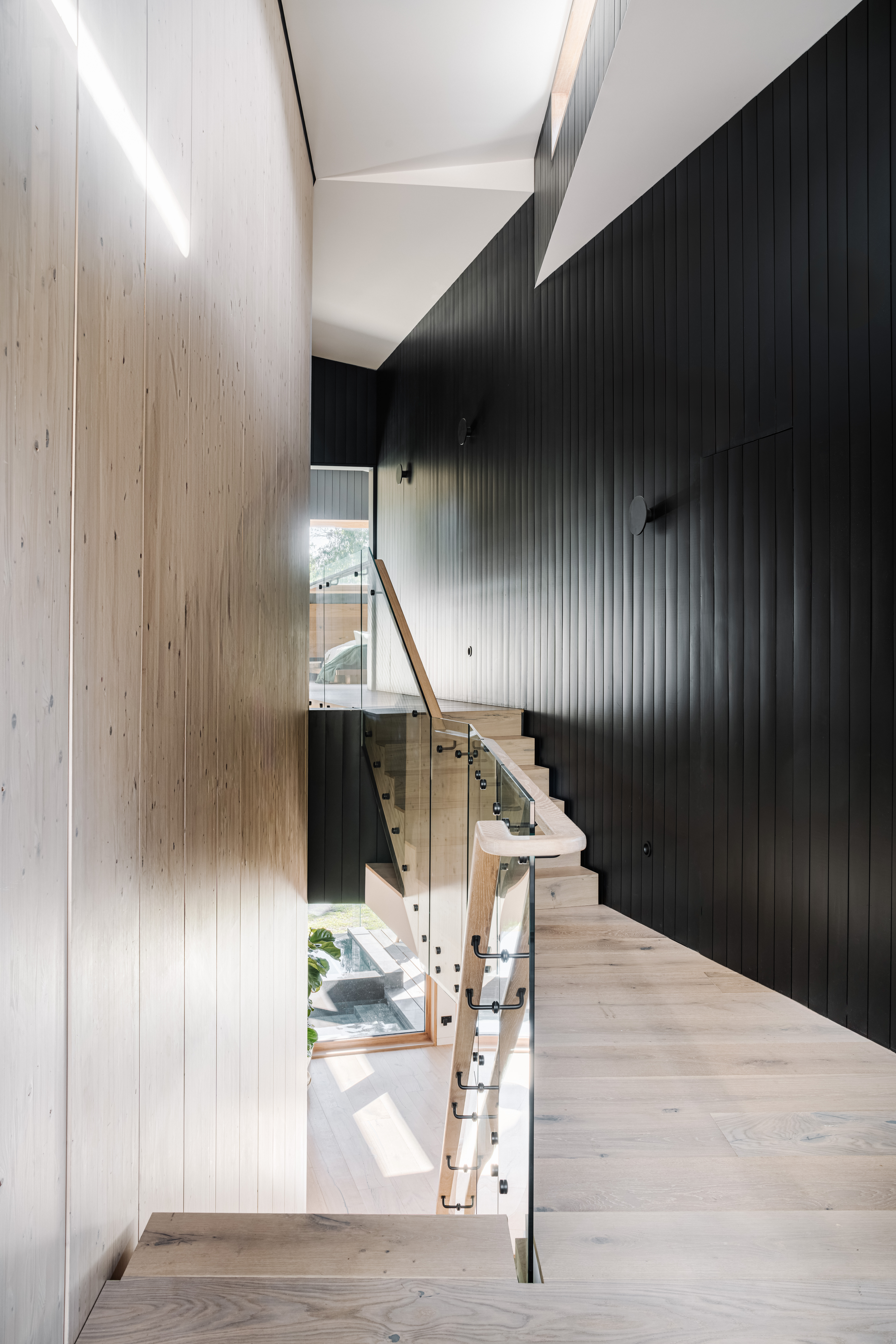

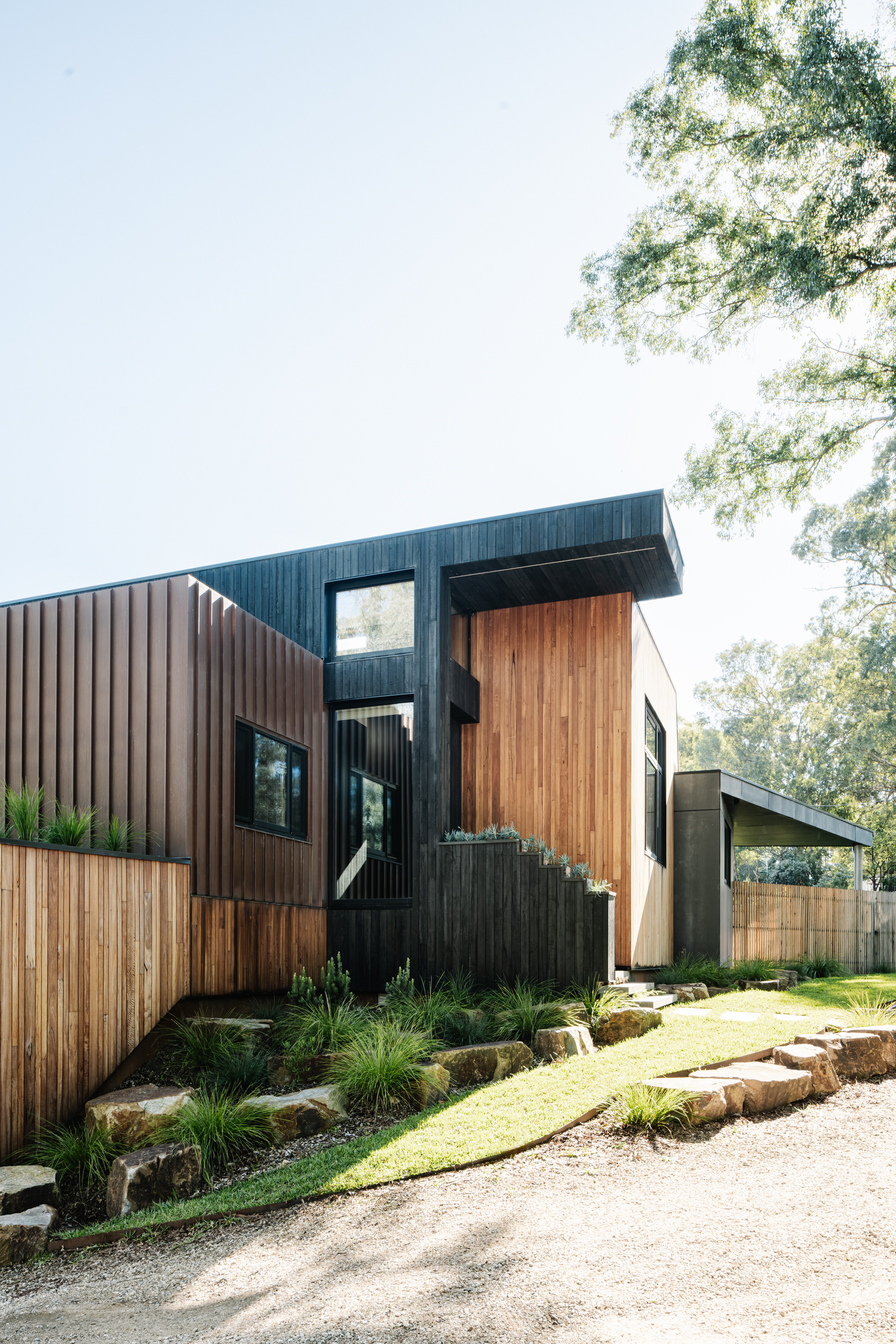

This project located on a steep, difficult to access but very visible site is the family home of the owner of GLux builders. This allowed him to use a range of innovative techniques including prefabricated structural insulated panels (SIPs), mass timber, wood fibre insulation, green roof, independent rainwater supply, heat pump hot water system, low environmental impact concrete, solar PV system, Australian made PH timber windows and sustainably sourced fixtures & fittings. The mass timber walls and floors are exposed internally to provide a warm finish especially to the three-level stair. External finishes include charred timber and other sustainably sourced hardwood claddings to meet the BAL29 bushfire rating.

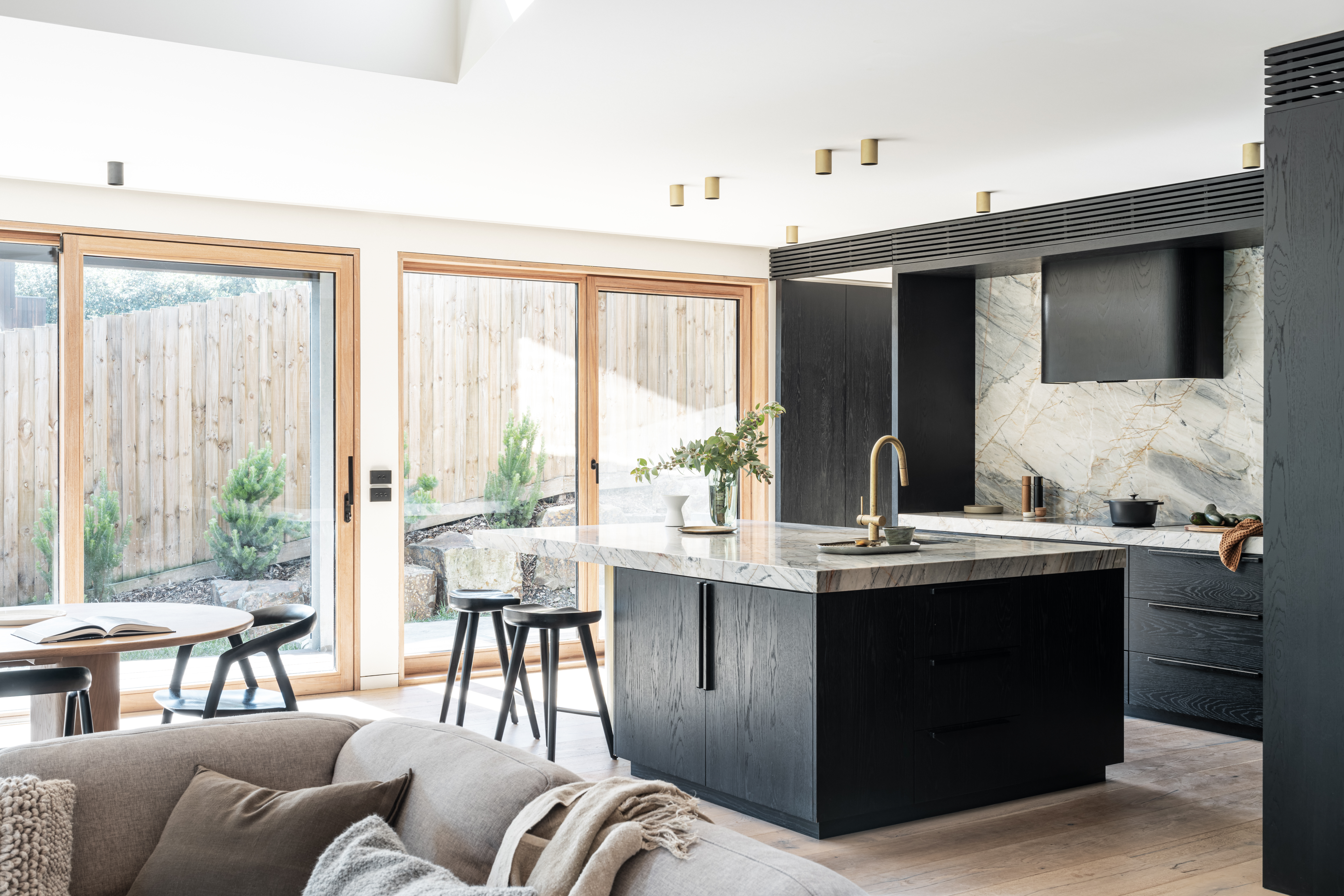

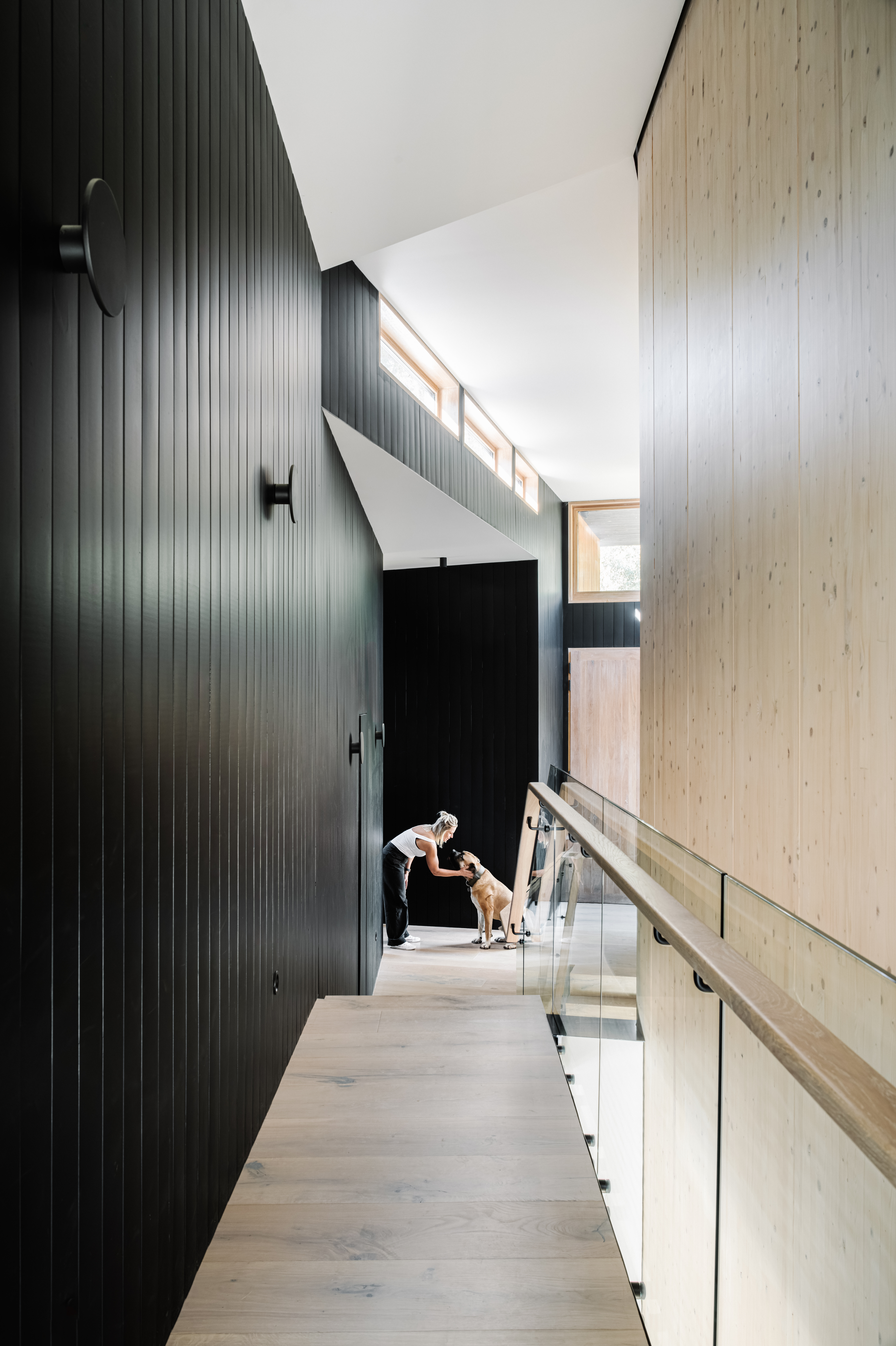

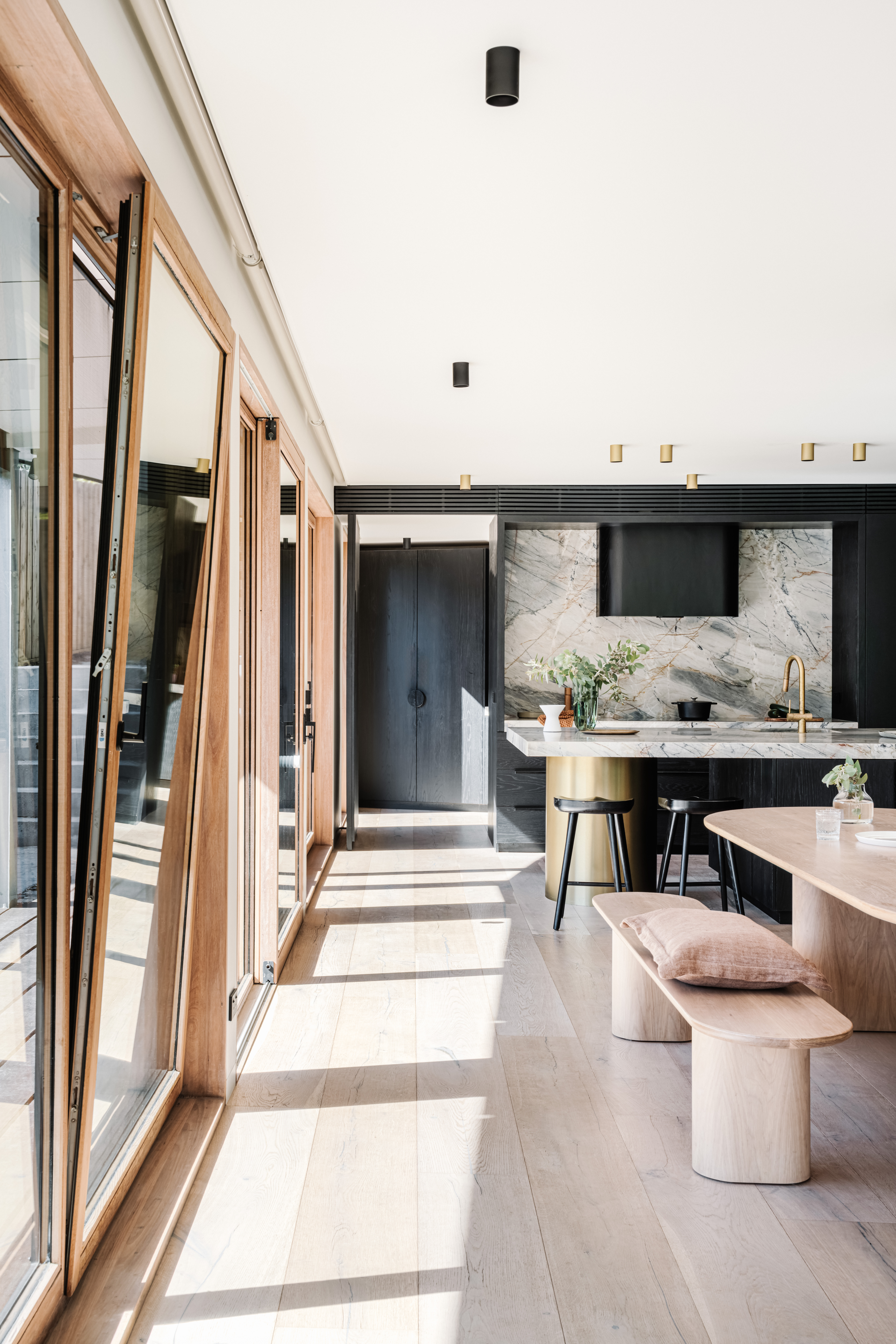

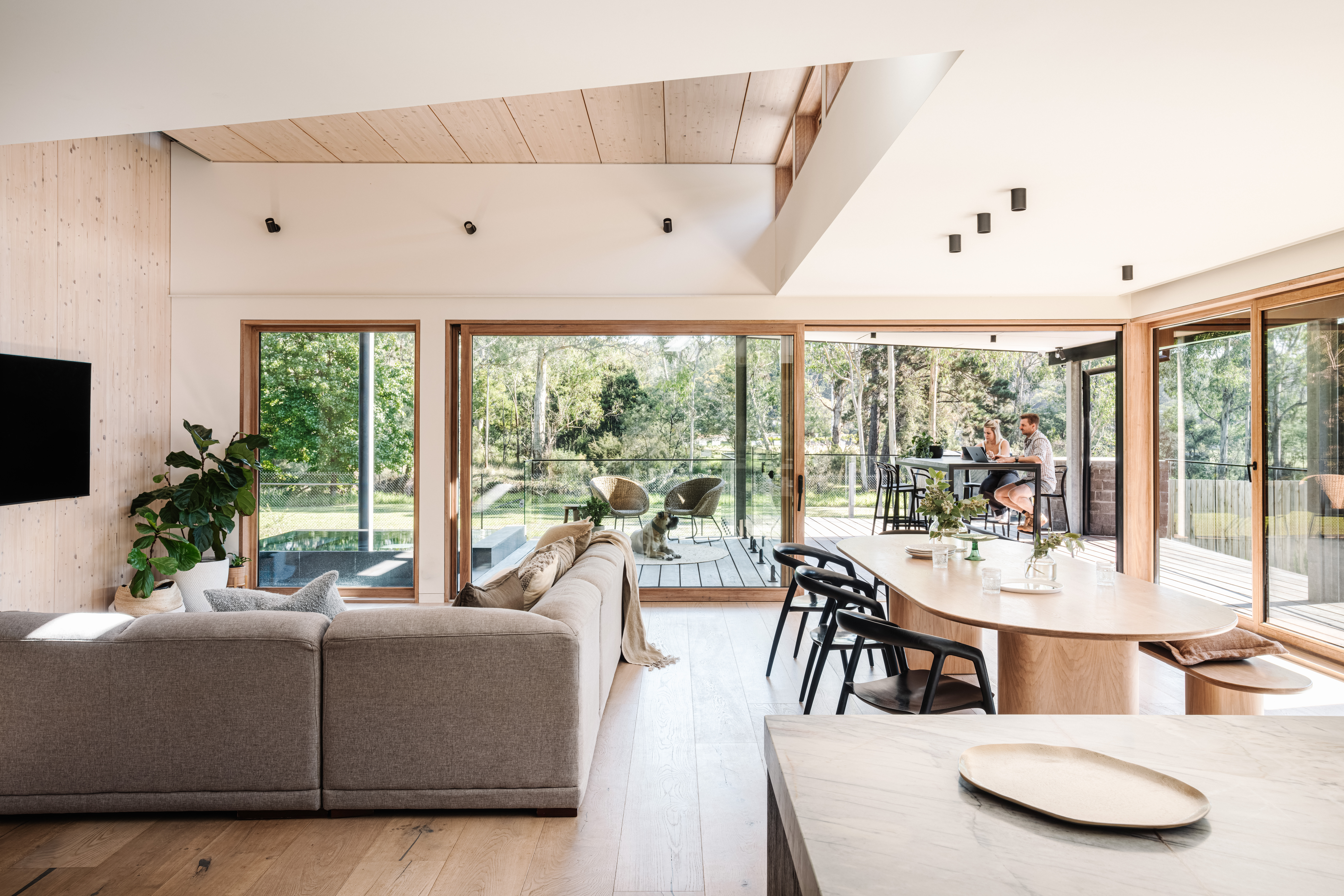

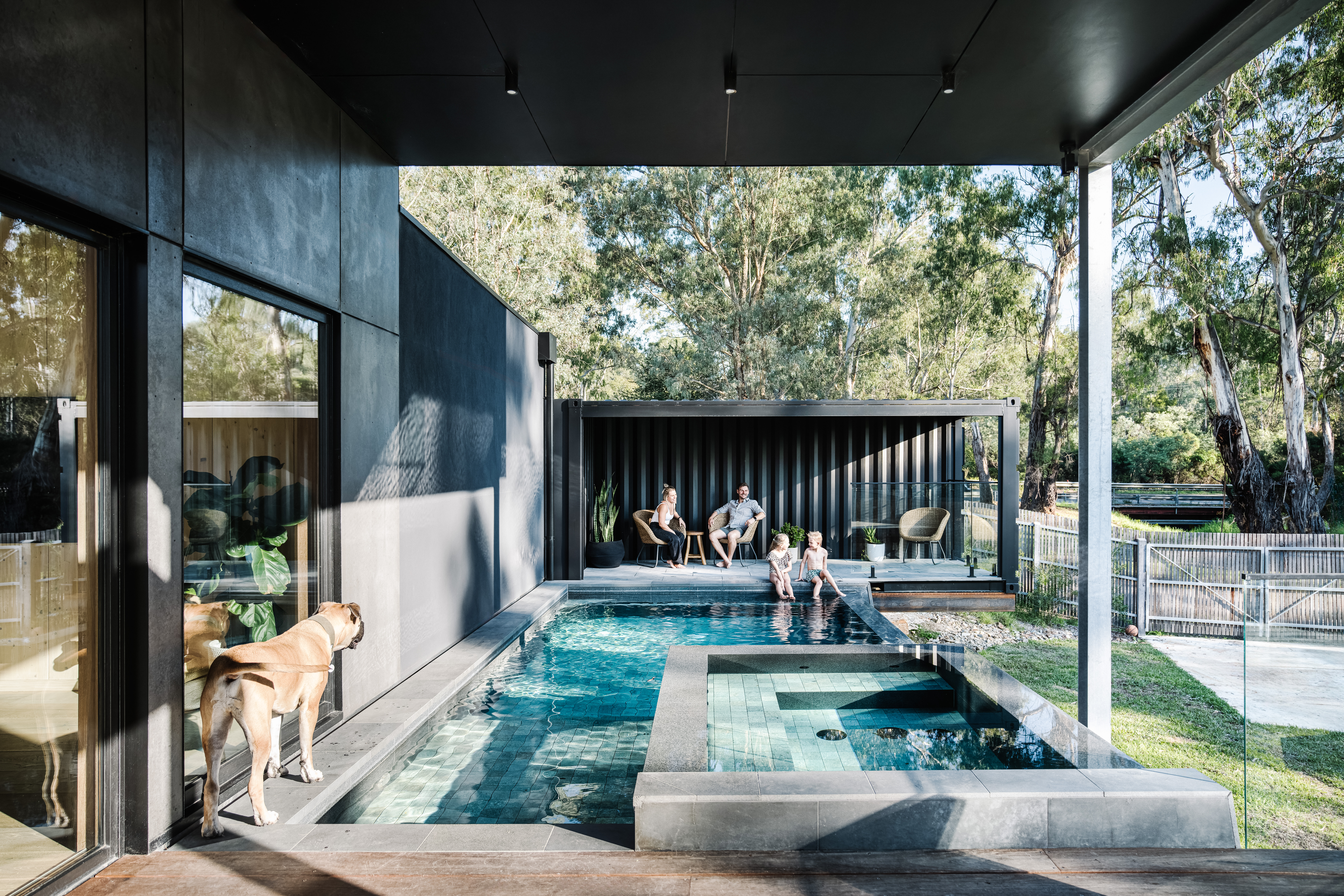

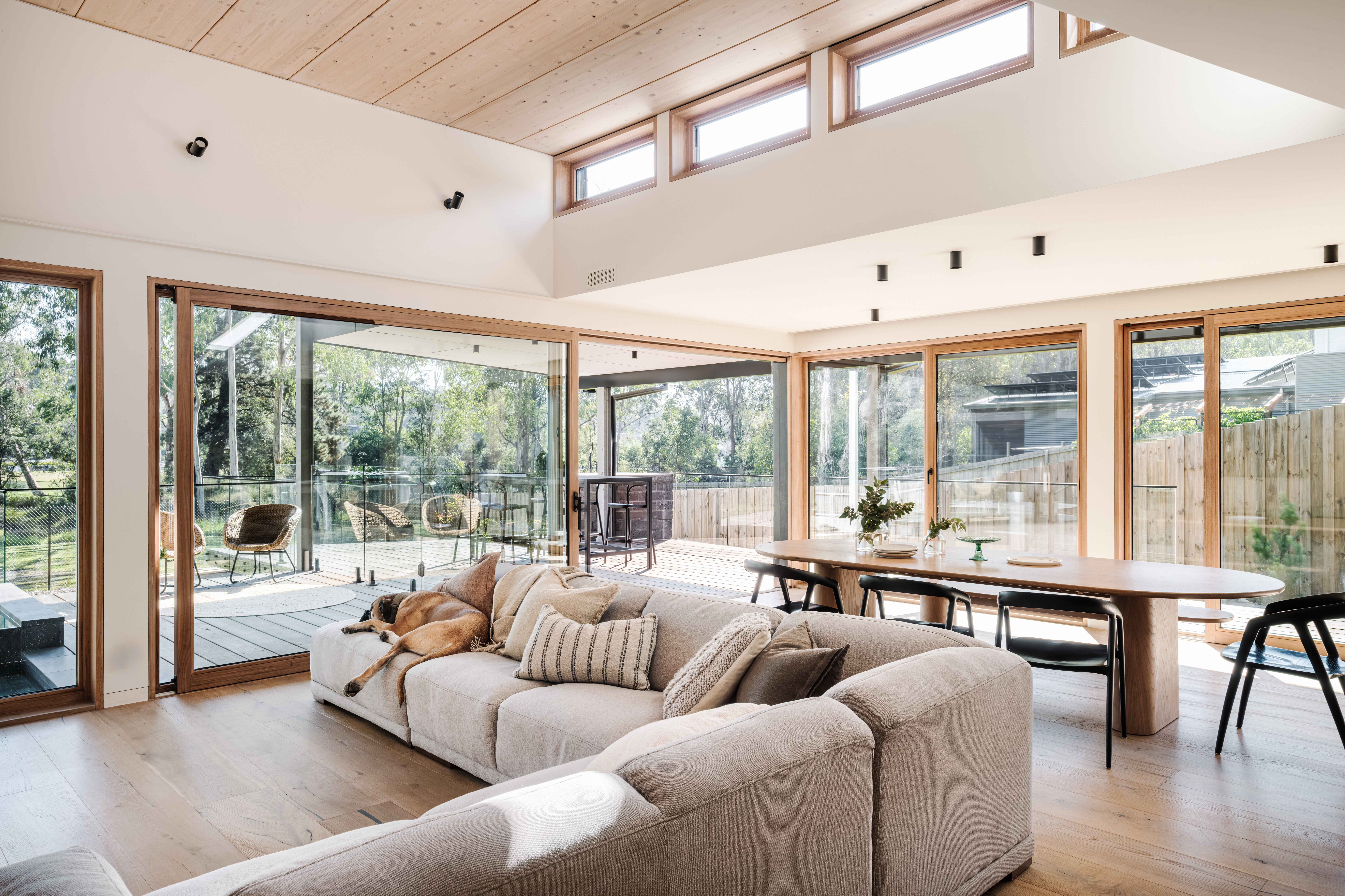

To cope with the steep irregular site which is constrained by the Yarra flood plain and road frontages, the accommodation is on three levels stacked at angles. Clerestory windows bring sunlight deep into the building and contribute to free solar energy. Full height glazing to the living area opens onto the deck and swimming pool with views to the trees in the Yarra valley.
This Passivhaus Premium project has been achieved by close cooperation with the owner who is also the builder. The 19kW pv array is sufficient for this large house despite being located on low pitched roofs so that it is not visible from the ground. The house is also self-sufficient in water by using the space under the mass timber ground floor for rainwater tanks
Thermal envelope
Walls: Fenster& Panel SIPs U0.24 Mass timber with Pavaflex Woodfibre U0.17. Claddings: Charred timber, Blackbutt, Copper, Cemintel
Roofs: SIPs U0.15,metal roofing, suspended ceilings. Green roof to garage
Floor: Mass timber with PIR U0.18

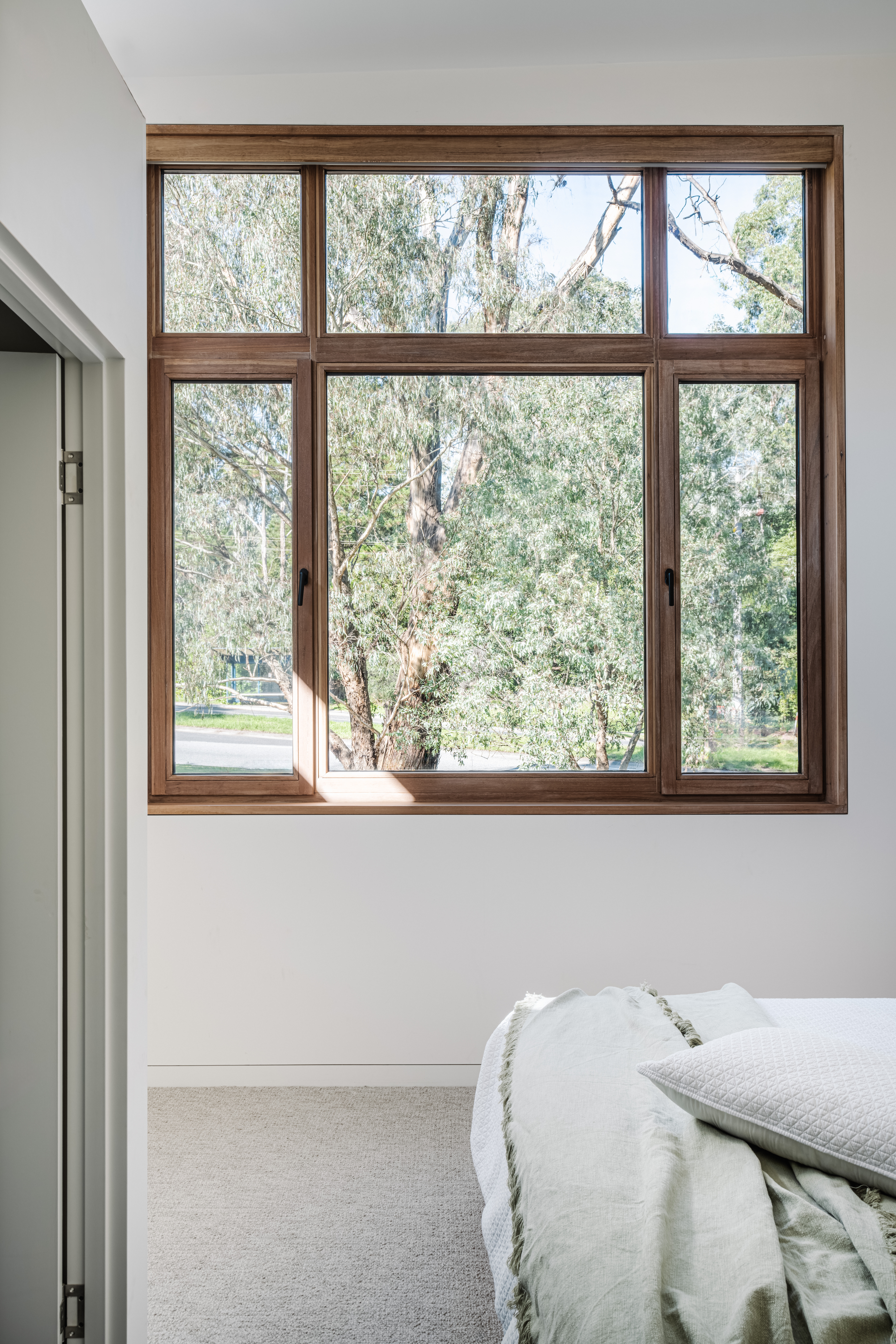

Windows: BINQ blackbutt BAL29 Uf 1.6 Triple glazing against road noise U0.85 g 0.5
Ventilation: Zehnder Q350 whole house balanced ventilation with heat recovery.
Heating/cooling: 3kW reverse cycle split system.
Builder: GLux PH Certifier: Detail Green
Mechanical systems
Ventilation Zhender, ComfoAir Q350
Heating installation No dedicated heating system other than reverse cycle heat pump air conditioning. Domestic hot water Reclaim Heat Pump split system
Rainwater harvesting.
Solar electricity (PHPremium)
Number of apartments / units: 1
Construction type: Mass timber and Structural Insulated panels.
Year of construction: 2023
Other parties involved
Architecture: David Halford 5c Sustainable Building Design
Building services: Fantech/Passivtech
Building physics: HMPCC Leo Halford Molinaro
Certifier: Luc Plowman Detail Green
Craftsperson / parties involved: GLux Builders
