171 ALBERT RUTTLE DRIVE, INVERLOCH
This is an interesting case study because by converting the original design to Passivhaus, a substantial reduction in the building cost was achieved while dramatically increasing the value as well as providing the other Passivhaus benefits of improved comfort and reduced running costs.
The original design by DB Design was unchanged but 5c Sustainable Building Design achieved overall capital cost savings of about 15% by changing from standard to Passivhaus construction.
Most of the budget remained unchanged because only a small percentage of the construction is relevant to Passivhaus.
The calculated heating demand was reduced from 61kWh/m2 per annum to 9kWh/m2 per annum. This would be a reduction of 11,544 kWh per year if the design temperatures were to be maintained using the original construction. (Passivhaus commonly reduces heating demand by around 90%). Due to the climate this reduction is achieved with only 90mm high performance glass wool between standard wall studs despite most windows facing away from the sun because the sea views are to the south.
The reduction in heating demand makes it possible to provide the energy from solar electricity and this building is calculated to be Passivhaus Plus.
The cooling demand remains similar since the design is optimised to minimise heating demand. Cooling is free in summer when there is excess solar electricity so it is logical to concentrate on reducing winter heating demand when solar electricity is limited. Because the cooling load was calculated rather than estimated, the cooling equipment could be reduced to suit the actual cooling load. Significant savings were therefore made in both capital and running costs.

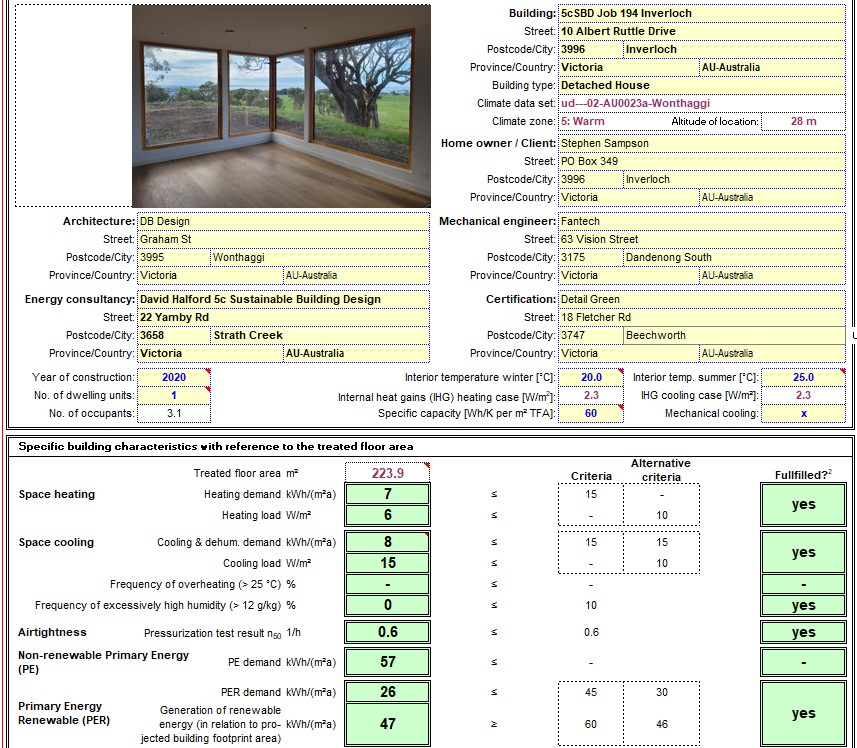

The original owners have had to move before the PH Certification was completed but the latest PHPP calculations and the agent’s sale particulars are shown below.

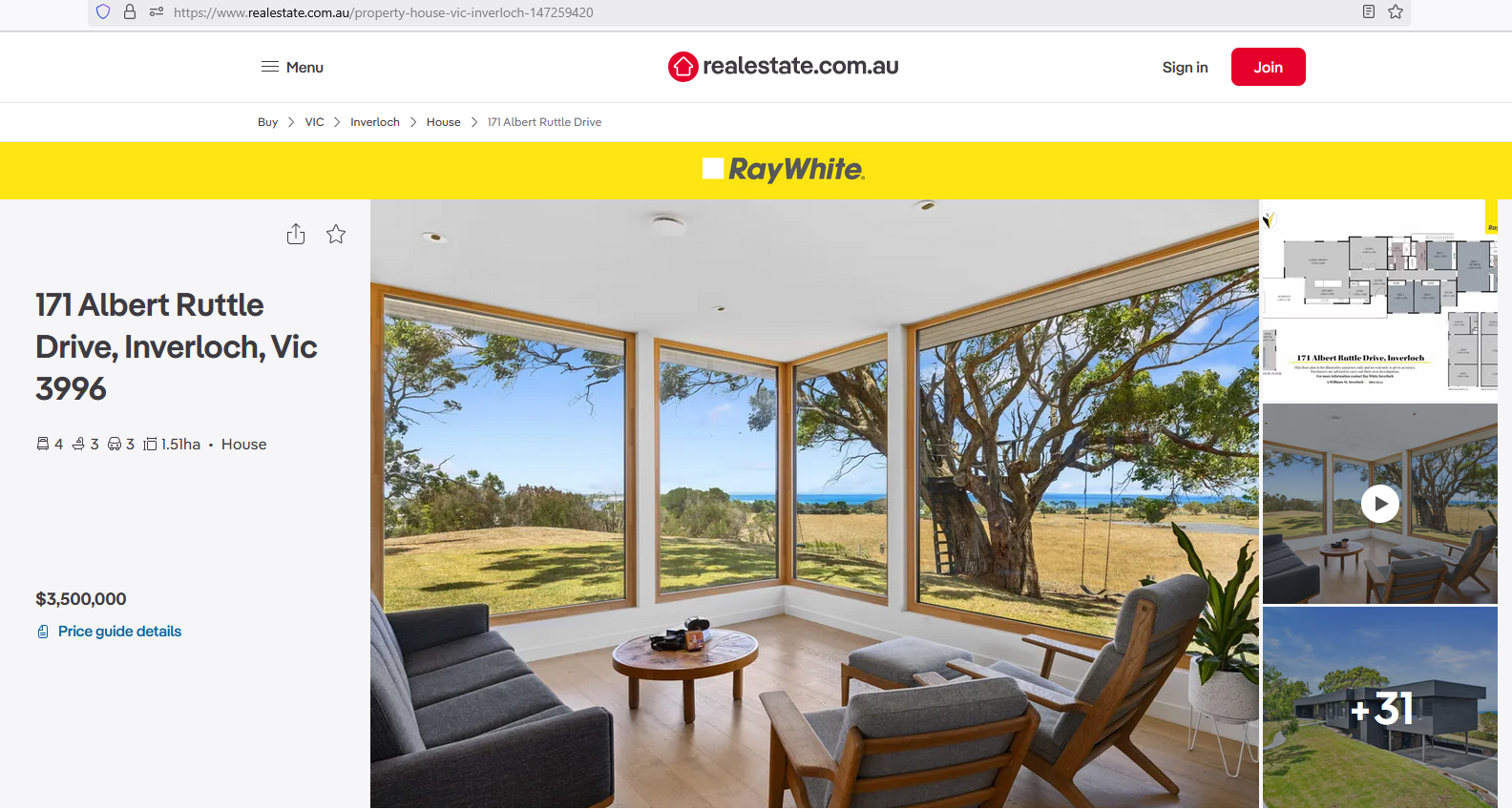

Ray White Real Estate sales particulars:
Stunning Passivhaus Property with Ocean Views: $3,500,000
171 ALBERT RUTTLE DRIVE, INVERLOCH

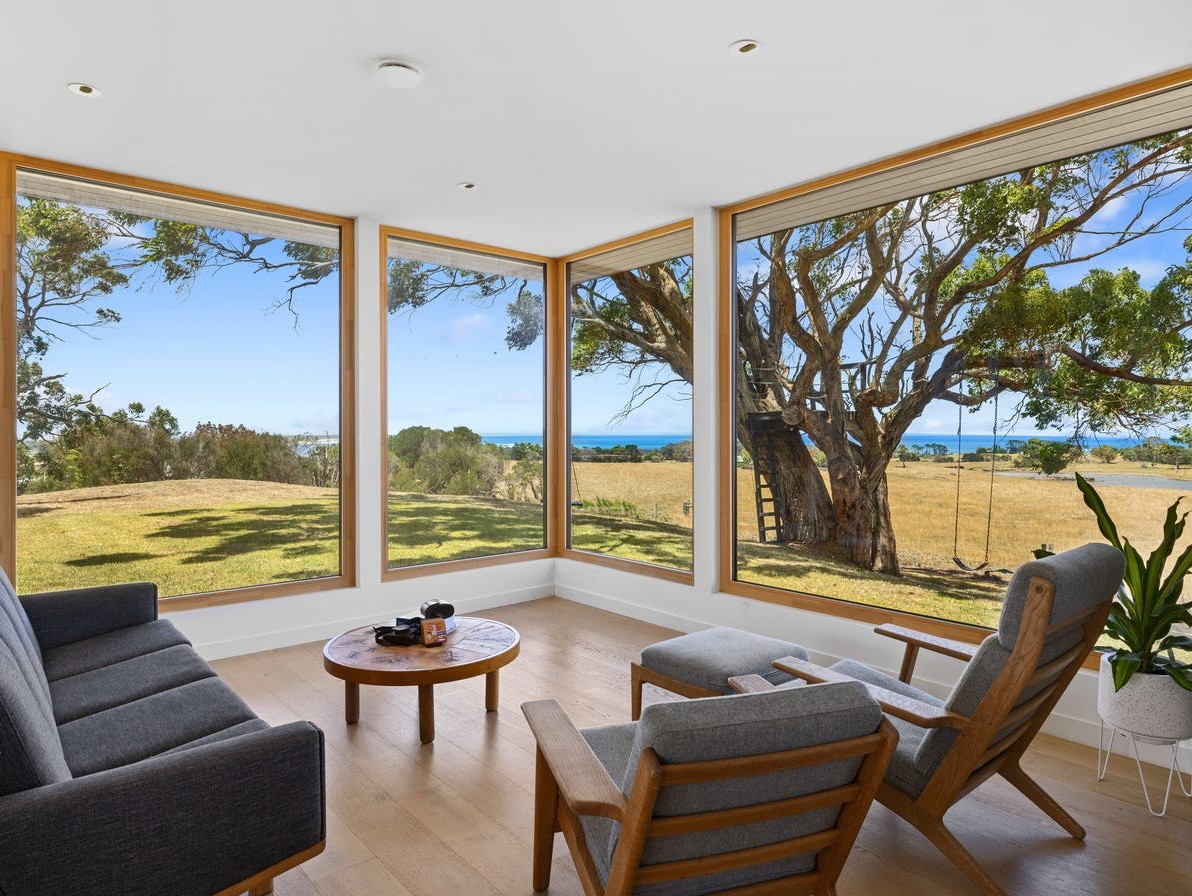

Nestled amidst native bushland, just a minute's drive from the Inverloch township, this exceptional property on Albert Ruttle Drive offers the perfect combination of privacy, sustainability, and breathtaking views. From the entrance to Andersons Inlet to Venus Bay and the iconic Wilsons Promontory National Park, this home boasts panoramic ocean and farmland views. Designed to rigorous Passivhaus standards, this home offers unrivalled energy efficiency, minimising the need for winter heating while delivering superior comfort and minimal energy consumption. Step into the elegant main living and lounge area, where expansive windows bring the stunning outdoor scenery indoors. Relax and watch storms roll in or waves crash below from this elevated viewpoint.
The open-plan kitchen, designed with entertaining in mind, features seamless connections to the living space. A large butler's pantry, dual ovens, induction cooktop, integrated fridge and dishwasher, and a Zip chilled and sparkling water tap elevate this space to pure luxury.
Outdoor entertaining is effortless with a fully equipped alfresco area. Featuring a built-in fireplace, stainless steel BBQ, bar fridge, and outdoor bathroom, this versatile space is perfect for year-round enjoyment.
The home includes four thoughtfully designed bedrooms. The generous master suite, located at the end of the hall, offers a
tranquil retreat with a luxurious ensuite and walk-in robe. Three additional bedrooms with built-in robes share a central bathroom with ocean views. A cosy, separate lounge area adds additional flexibility and space for a family to watch tv or relax.
The Passivhaus design ensures that no matter what the weather, this home is comfortable and peaceful; no draughts, condensation or mould, rarely a requirement for heating or cooling, fresh air all year round and a consistent temperature throughout the house, including bathrooms and laundry.
Enhance your lifestyle with an indoor magnesium pool you will be able to use all year round. The pool house also contains a gym space and shower area. The property also includes a spacious 160m² timber-framed shed with a separate 2 storey living area, ideal for guests or teenagers, featuring its own bedroom and bathroom. The shed is fully equipped with 3-phase power, a 14.7 kW solar system and a compressed air system. There is plenty of room for boats, caravans, cars and storage. Two further storage rooms under the house can provide a home for surfboards, bikes as well as drying room for the winter months.
Built to the European Passivhaus standards, this home exemplifies cutting-edge sustainable design: - Triple-glazed Windows: Logikhaus tilt-and-turn, airtight windows with
aluminium exterior and timber interior. - Insulated Doors: High-performance aluminium-clad exterior with European oak interior. - Advanced Insulation: Floors (R4), walls (R2.7), and ceilings (R7), with PIR foam to eliminate thermal bridging. - Highest quality building wrap Membranes: An Internal airtight membrane and an external breathable membrane for airflow and temperature control. - Ventilation System: MVHR
(Mechanical Ventilation Heat Recovery) system for fresh filtered air, energy efficiency, and optimal thermal comfort. - Hot Water System: Sanden EcoPlus heat pump, the market's most energy-efficient unit. This property is a masterpiece of sustainable luxury, offering unparalleled energy efficiency, breathtaking views, exceptional design and comfort.
Video link https://www.youtube.com/watch?v=HKpec4wqVCs
For more pictures see Ray White sales website: https://www.realestate.com.au/property-house-vic-inverloch-147259420
Construction information:
Walls: Standard 90mm studs with glass wool between U0.29. Cladding: Charred timber
Roofs: Standard trusses with glass wool ceiling insulation U0.09
Floor: Standard joists with glass wool between U0.14
Windows: LogikWin Aluclad Uf 1.4 Triple glazing U0.61 g 0.51
Ventilation: Zehnder CA350 whole house balanced ventilation with heat recovery.
Heating/cooling: 3kW reverse cycle split system.
Hot water: Sanden heat pump.
Builder: Marin Construction Matthew Bright
Certifier: Detail Green
