BLUEGUM -CERTIFIED PASSIVE HOUSE PLUS
PHI Database ID 6959 https://passivehouse-database.org/index.php?lang=en#d_6959
General Information
Passive House Plus new build
Building type: detached single family house
Location: AU - 3431 (Victoria)
Description:

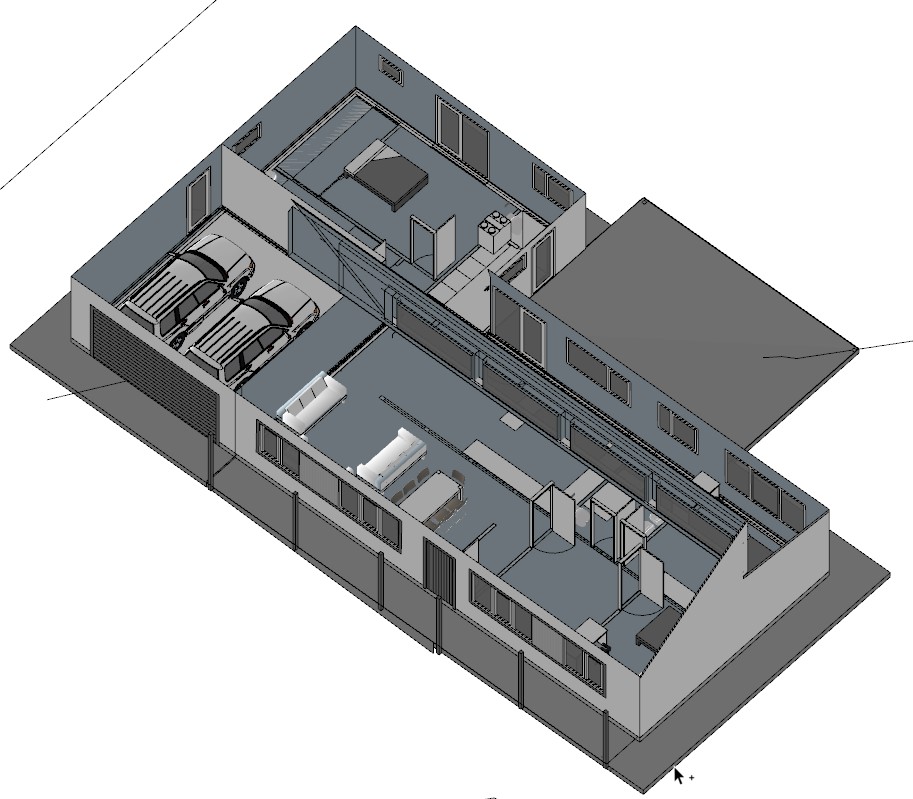

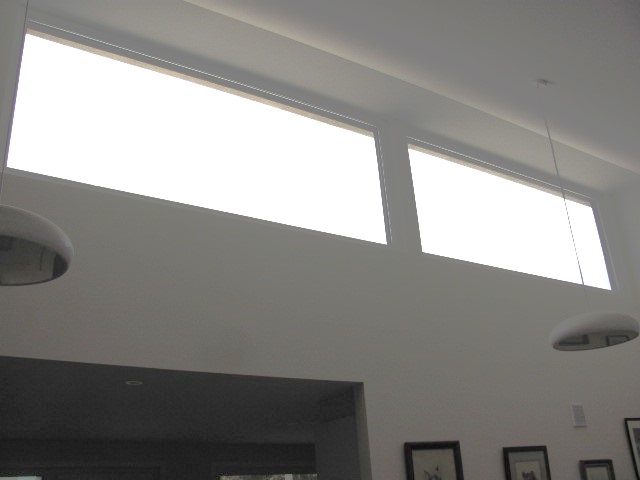

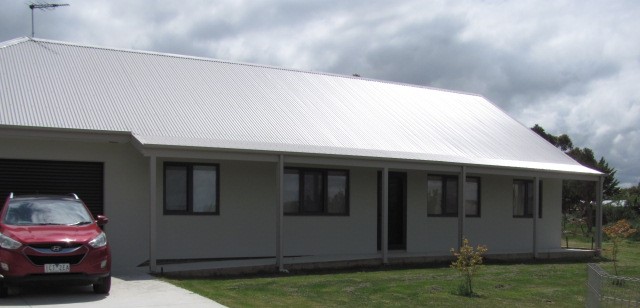

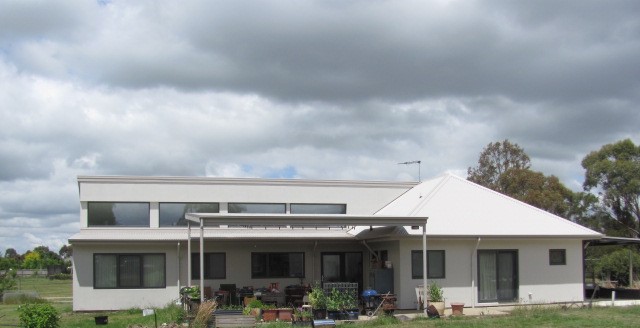

Bluegum: This conventional suburban style plan with an integral garage, living areas facing the street and a covered veranda across the rear has enhanced performanceby the use of clerestory glazing. This high-level glazing brings sunlight into the living areas (which face away from the sun) and free solar energy which enables the house to achieve Passivhaus Plus. Walls are standard 90mm timber studs with rendered external insulation cladding. The roof is timber trusses with glasswool insulation. The floor is insulated above the slab to eliminate thermal bridges from the structural piers. Window frames are Upvc.
Number of apartments / units: 1
Treated Floor Area according to PHPP: 144 m2
Construction type: timber construction
Year of construction: 2020
Other parties involved
Architecture: David Halford 5c Sustainable Building Design
Building services: David Halford 5c Sustainable Building Design
Building physics: David Halford 5c Sustainable Building Design

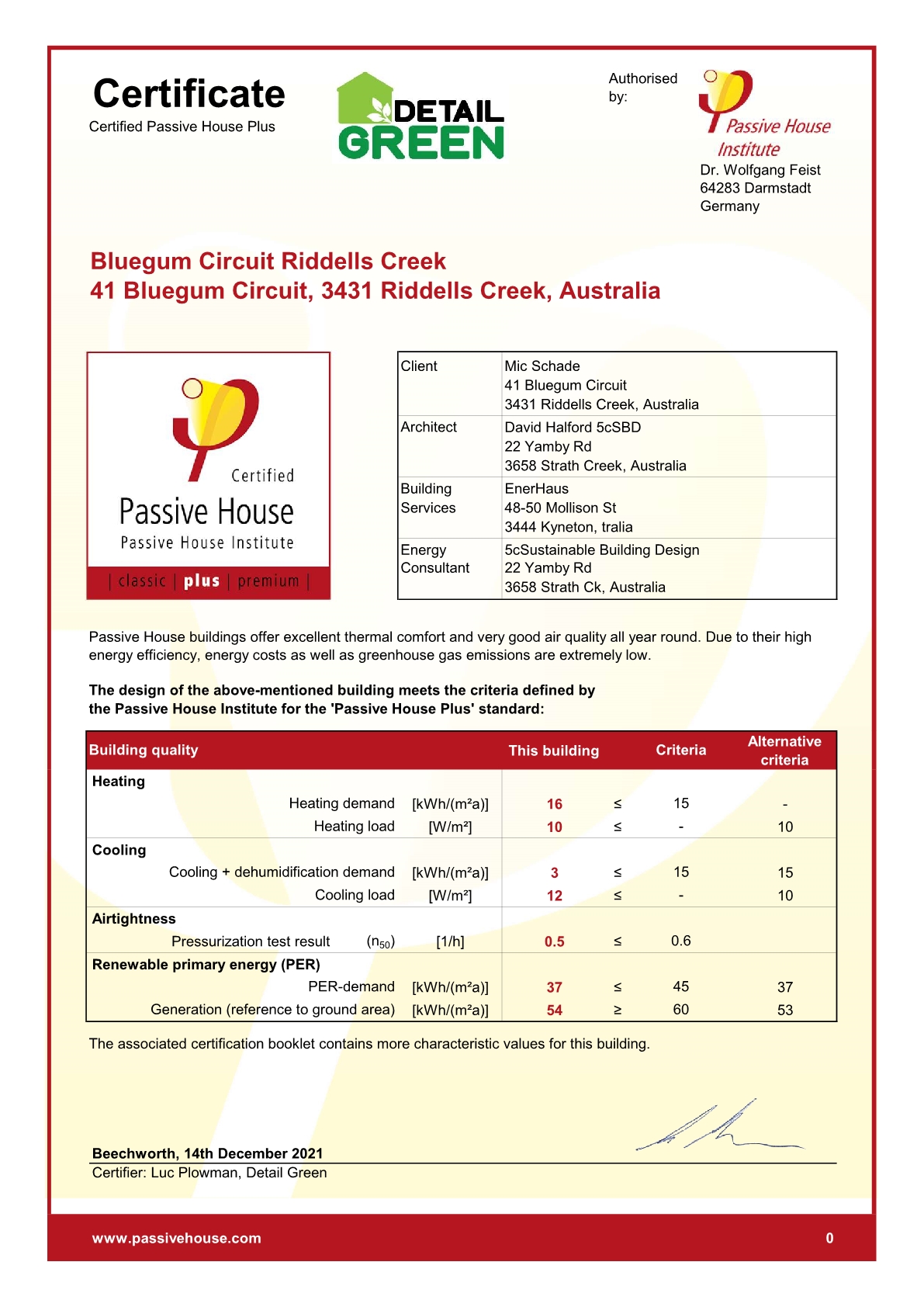

Certifier: Luc Plowman Detail Green
Statics: RMG
Craftsperson / parties involved: Stuart Lee
Thermal envelope
Exterior wall: Standard 90mm timber frame with bushfire rated rendered insulation cladding U-value = 0.205 W/(m2K)
Basement floor / floor slab: Concrete slab with PIR insulation and particleboard deck above
U-value = 0.373 W/(m2K)
Roof: Standard timber trusses with glasswool insulation U-value = 0.1 W/(m2K)
Window Frames: LogikWin Upvc frames, U w-value = 0.9 W/(m2K)
Glazing Triple glazing U g-value = 0.6 W/(m2K) g -value = 5 %
Entrance door LogikWin Upvc door U d-value = 1.4 W/(m2K)
Mechanical systems
Ventilation Zhender, ComfoAir Q350
Heating installation No dedicated heating system other than revere cycle air conditioning Domestic hot water Sanden Eco Heat Pump split system
Additional information
Ecological aspects Rainwater harvesting. Solar electricity (PHPlus).
PHPP values
Air tightness n50 = 0.5/h
Annual heating demand 16 kWh /(m2a ) calculated according to PHPP
Heating load 10 W/m2
PE demand (non-renewable Primary Energy) 72 kWh /(m2a ) on heating installation, domestic hot water, household electricity and auxiliary electricity calculated according to PHPP
PER demand (renewable Primary Energy) 34 kWh /(m2a ) on heating installation, domestic hot water, household electricity and auxiliary electricity calculated according to PHPP Generation of renewable energy 54 kWh /(m2a ) based on the projected area
